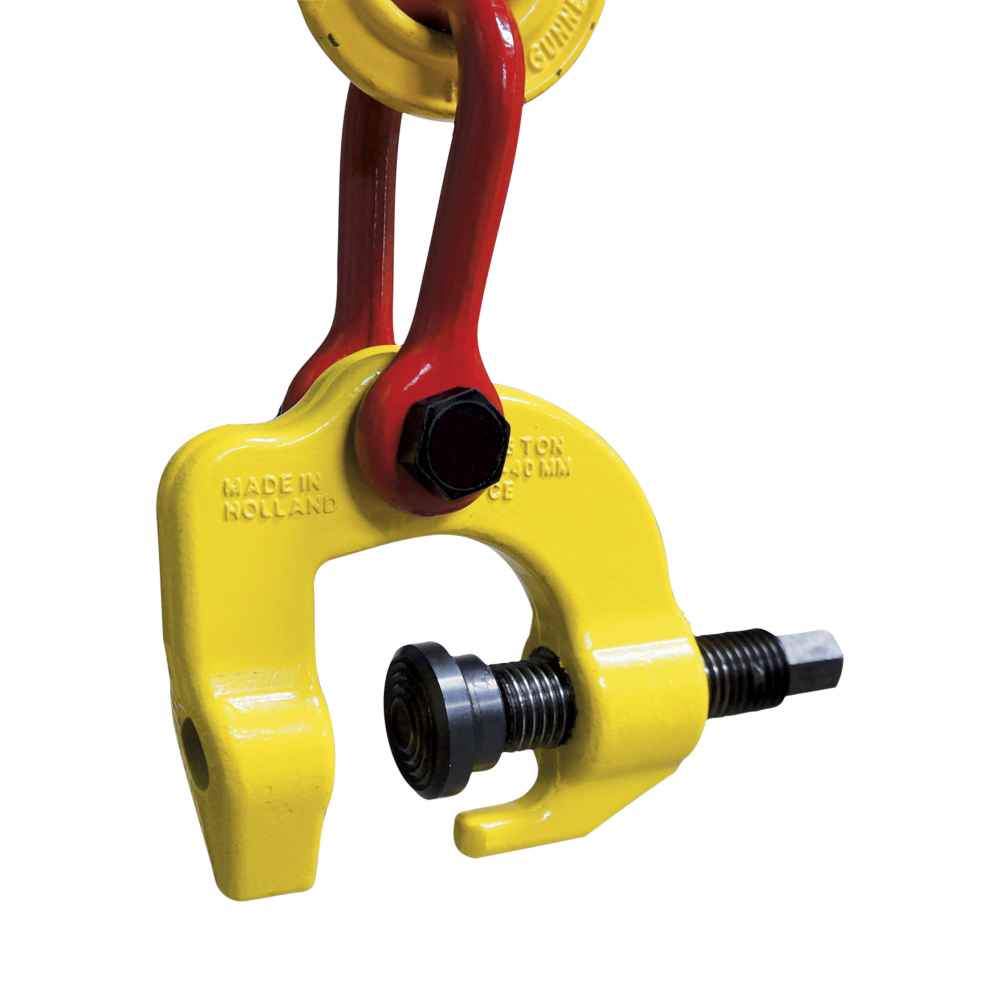

Terrier TSCC 1 Ton Universal Lifting Screw Clamp - 901000

Terrier TSCC 1 Ton Universal Lifting Screw Clamp - 901000

$508.95 USD
$508.95 USD
Sale Sold out
Features:

  • Universal lifting screw clamp designed for lifting a wide variety of steel structures.

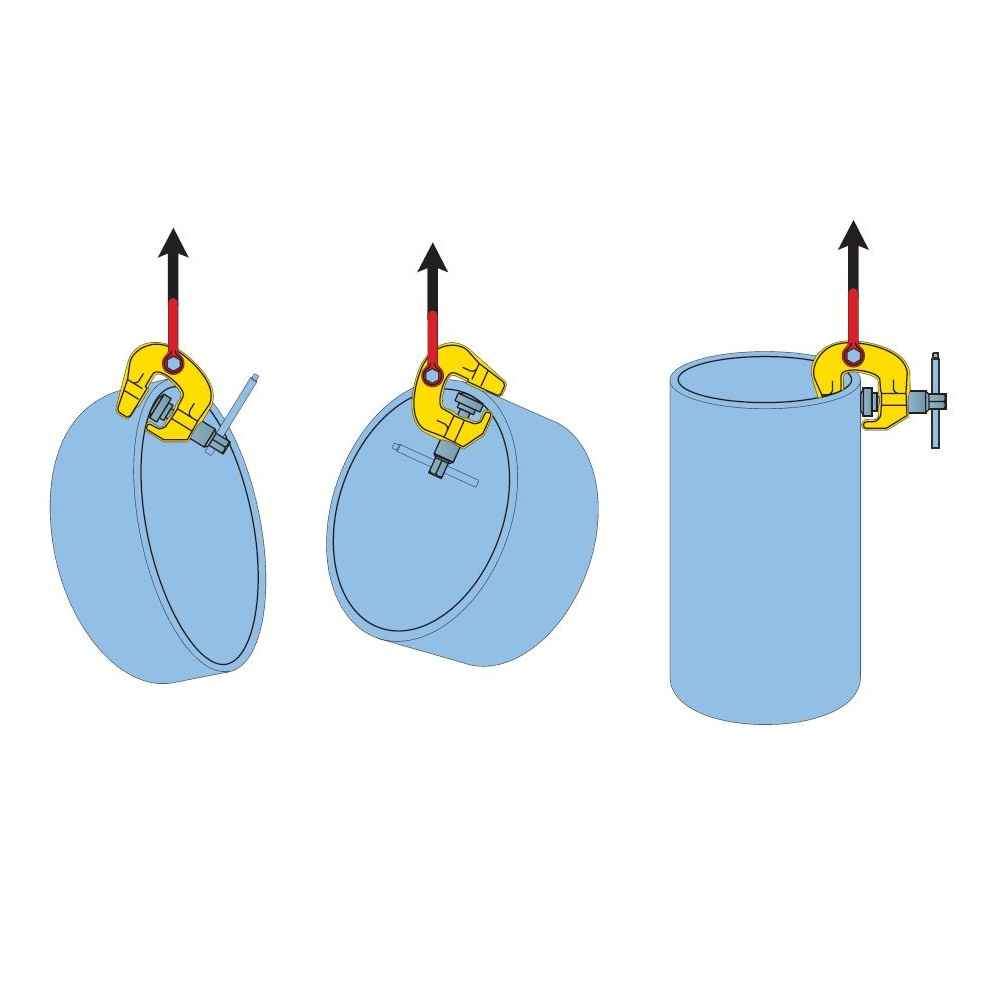

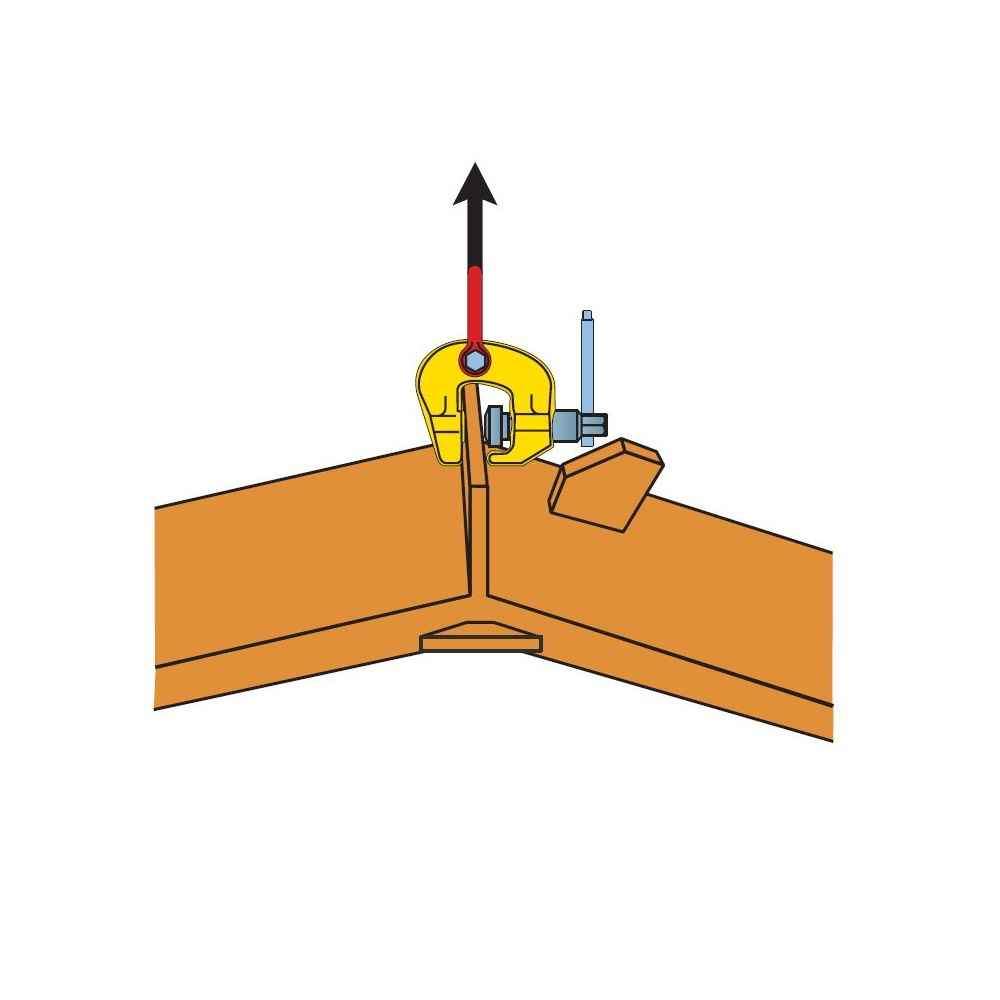

  • Can be used for both horizontal and vertical lifting of steel structures.

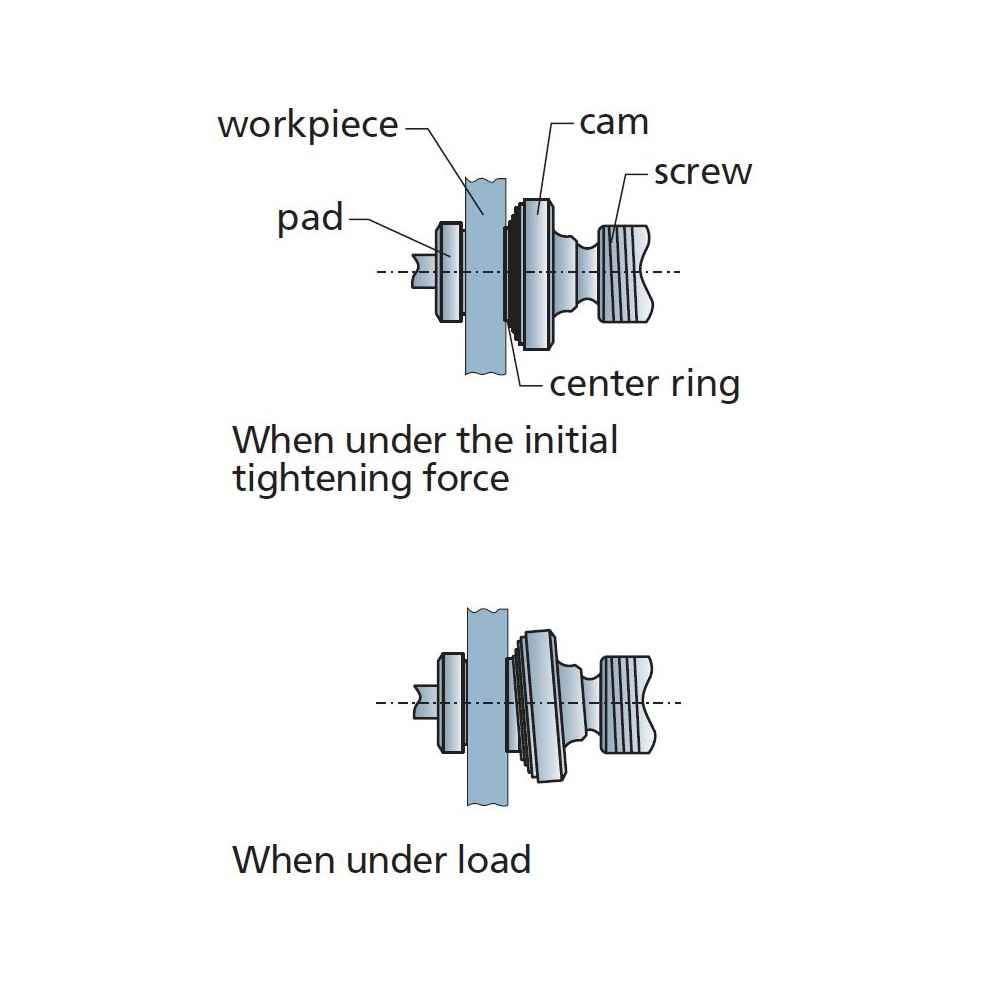

  • Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
  • Articulated lifting eye ensures an effective clamping force in every position.
  • The hardness of the cam and pivot is suitable for lifting materials with a max hardness of 37 HRC/420 Brinell.
  • No minimum working load limit
  • Tightening Forces (Depending on material, could vary):
  • TSCC 1/2 ton - at least 10Nm (3.687 pound-foot, 44.25 pound-inch)
  • TSCC 1 - 6 ton - at least 40Nm (25.815 pound-foot, 309.78 pound-inch)
